NOTE: YOU'LL HAVE OPTIONS TO CHOOSE FREIGHT DURING CHECKOUT ON A SEPARATE PAGE, PLEASE FOLLOW INSTRUCTIONS.
- Low daily maintenance.
- American made
- all components readily available.
-Technical service is just a phone call away.
- Scientifically balanced ram to anvil ratios for maximum effectiveness.
-Dies are made of heat treated S-7 tool steel.
- Our QC™ die system allows fast easy changing of interchangeable dies.
- Meets OSHA safety specifications.
- Over 180-degree foot pedal control easily accessible regardless of operator works right or left handed.
- No moving parts other than the free-floating head.
- Operates almost noise free except for hammer blows.
- Economical to purchase - even for a hobbyist.
- User-friendly.
BLU QC™ (Quick Change) interchangeable die system with knifemaking dies included.
The Big BLU Power Hammer continues to be the workhorse and center of activity in hundreds of shops across the United States and in many countries around the world.

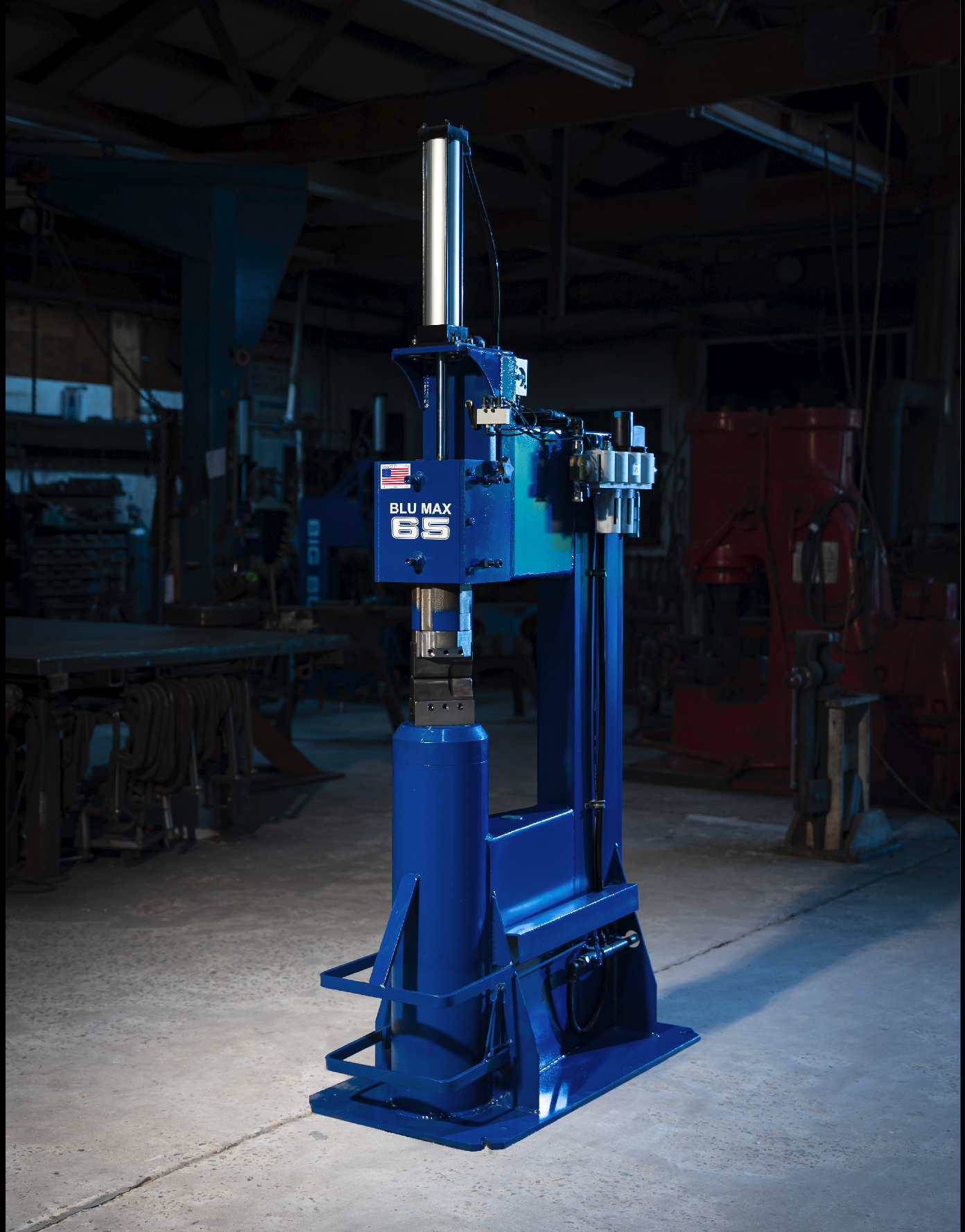

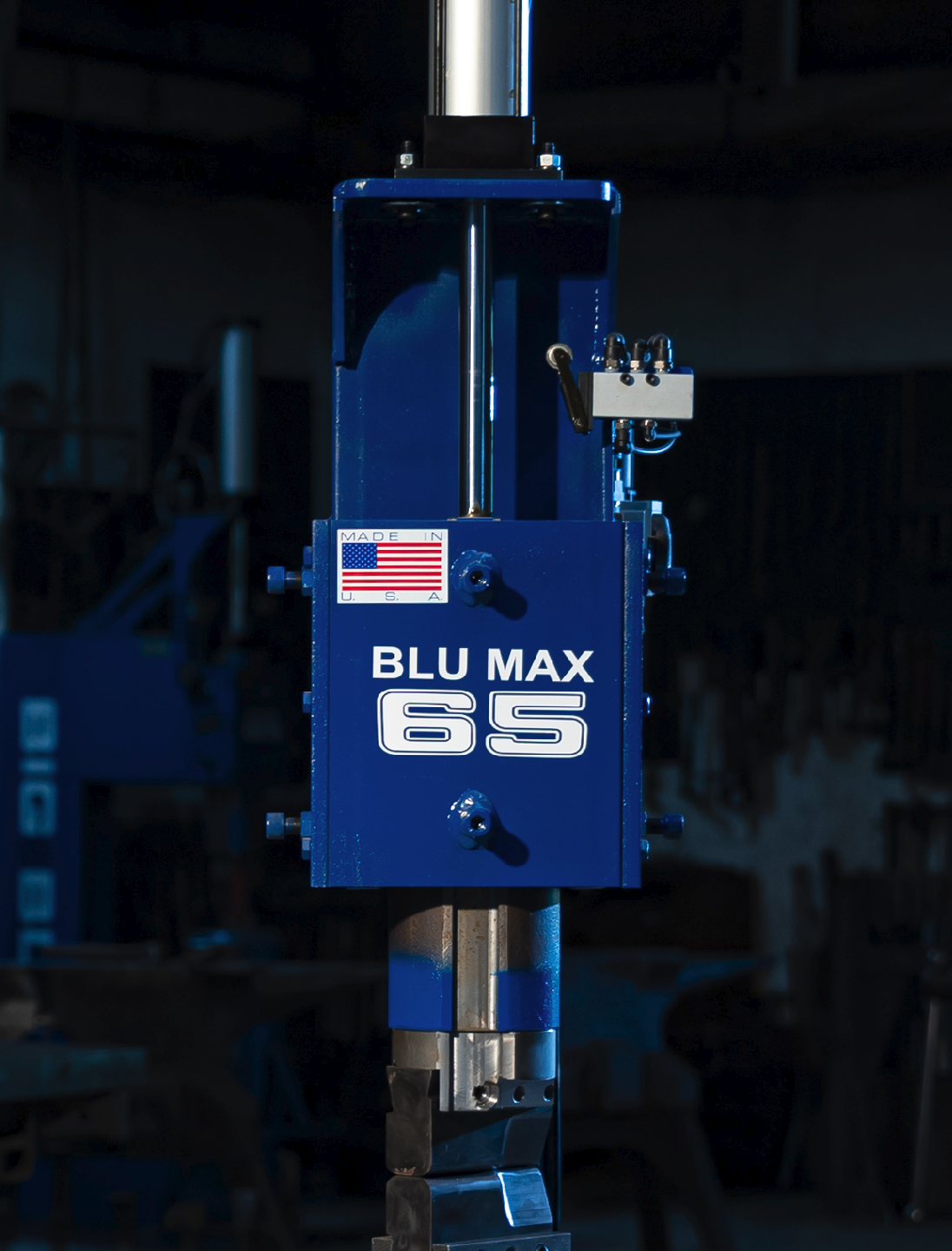

The BLU 65 MAX 11th generation has more power and more speed to provide maximum productivity. The Max 65 has been designed with today's metalsmiths in mind. Its innovative yet simplistic design allow it to be part of any size shop.
- Comes Ready to use with a set of Knife forging dies included with the machine.
- Runs effectively at 90 psi
- Average air consumption during hot forging is 14-16CFM-Normally paired with a 3.5HP to 5HP compressor with an 80 gallon tank
- Big BLU QC™ Quick Change Die System
- Dies are interchangeable between all Big BLU Power Hammers with QC dies
- 65 pound (30 kg) Ram (Hammer head)
- 500 pound (227 kg) solid steel anvil-1.75" x 3" x 5" (44.5 x 76.2 x 127 mm) Dies
- 2" (63.5 mm) bore cylinder with double wear bands.
- 7.5" Adjustable Stroke.
- Full control on material and tooling up to 2.5" tall
- Infinite control of 0-220 strokes per minute coupled with a soft touch to massive blows is achieved by use of foot pedal.
- The 18" (457 mm) throat accommodates 36" (914 mm) plates and/or pieces of unusual sizes and shapes.
- OSHA Treadle Guard.-89" (2261 mm) high, 36" x 20" (914 x 508 mm) base.
- 1450 pound (660 kg) total weight shipping.
- Sand can be poured inside the back frame as ballast adding in excess of 250 pounds (120 kg)
- Shipping and moving dimensions:-
* On the ground with the cylinder off 65"tall
* On the pallet with the cylinder off 71" tall
* Shipping size while in full crate on pallet 44" wide 35" deep and 88" tall
OPTIONAL: Clamping Mode with 600 pounds static pressure.
The BLU 110 MAX 11th generation has more power and more speed to provide maximum productivity. The Max 110 has been designed with today's metalsmiths in mind. Its innovative yet simplistic design allows it to be part of any size shop.
- Comes Ready to use with a set of Knife forging dies included with the machine
- Runs effectively at 125 psi for 95% power index
* Min 40 PSI minimum for 20% power index
* Max 160 PSI for 100% power index
- Average air consumption during hot forging is 16-18 CFM
- Normally paired with a 5HP compressor with an 60 - 80 gallon tank
- Big BLU QC™ Quick Change Die System
- Dies are interchangeable between all Big BLU Power Hammers with QC dies
- 110 pound (50 kg) Ram (Hammer head)
- 700 pound (318 kg) anvil-1.75" x 3" x 5" (44.5 x 76.2 x 127 mm) Dies
- 2.5" (63.5 mm) bore cylinder with double wear bands.
- 9" (190mm) Adjustable Stroke.
- Full control on material and tooling up to 4.5" tall
- Infinite control of 0-275 strokes per minute coupled with a soft touch to massive blows is achieved by use of foot pedal.
- The 18" (457 mm) throat accommodates 36" (914 mm) plates and/or pieces of unusual sizes and shapes.
- OSHA Treadle Guard.
- 89" (2261 mm) high, 36" x 20" (914 x 508 mm) base.
-1575 pound (630 kg) total weight.
-Sand can be poured inside the back frame as ballast adding in excess of 300 pounds (140 kg)
Shipping and Moving Dimensions:
* On the ground with the cylinder off 72"tall
* On the pallet with the cylinder off 78" tall
* Shipping size while in full crate on pallet 44" wide 35" deep and 88" tall
OPTIONAL: Clamping Mode with 800 pounds static pressure.
The BLU MAX 155 11th generation has even more power and more speed to provide maximum productivity. We designed the BLU MAX 155 at the request of larger shops. The BLU MAX 155 has a heavier 155 pound ram, more throat height, and longer 10" stroke allowing for work on pieces up to 6-1/2" tall. The BLU MAX 155 comes standard with the clamping mode feature.
- Comes Ready to use with a set of Knife forging dies included with this machine
- Runs effectively at 140 psi at 95% power index
* Min 50 PSI at 20% power index
* Max 180 PSI for 100% power index
- Average air consumption during hot forging is 21-24CFM
- Normally paired with a 7.5HP to 10HP compressor with an 80 gallon tank
- Big BLU QC™ Quick Change Die System
- Dies are interchangeable between all Big BLU Power Hammers with QC dies
- 155 pound (70 kg) Ram (Hammer head)
- 800 pound (362 kg) anvil
- 1.75" x 3" x 5" (44.5 x 76.2 x 127 mm) Dies
- 3.25" (82.6 mm) bore HD cylinder with double wear bands.
- Taller 10" (224mm) Adjustable Stroke.
- Full control on material and tooling up to 6.5" tall
- Infinite control of 0-210 strokes per minute coupled with a soft touch to massive blows is achieved by use of foot pedal.
- The 18" (457 mm) throat accommodates 36" (914 mm) plates and/or pieces of unusual sizes and shapes.
- 95" (2413 mm) high, 36" x 20" (914 x 508 mm) base.
- 1700 pound (770 kg) total weight.
- Sand can be poured inside the back frame as ballast adding in excess of 300 pounds (140 kg)
- Shipping and Moving Dimensions:-
* On the ground with the cylinder off 76"tall
* On the pallet with the cylinder off 82" tall
* Shipping size while in full crate on pallet 44" wide 35" deep and 88" tall
OPTIONAL: Clamping Mode with 1000 pounds static pressure.
